Aluminum to Copper Wire Connectors, Copper to Aluminum Wire Connectors with 2 Port, 10 Pack
$39.88
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mybeautymarx.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$39.88
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mybeautymarx.com
Free 30-day returns Details
Product details
| Management number | 211031990 | Release Date | 2026/04/04 | List Price | $15.95 | Model Number | 211031990 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Design Philosophy: Aluminum to copper wire connectors are designed as safety mechanical lugs for aluminum to copper connection, eliminating the risk of electrochemical reaction caused by direct connection between copper wire and aluminum wire. This is a very cost effective way to repair aluminum wiring in buildings currently
- Applicable Specifications: The aluminum wire connectors can withstand voltages up to 300V and is suitable for #12 to #10 solid aluminum wire and #18 to #10 solid or stranded copper wire. It is mainly used for the connection of copper wire and aluminum wire, and can also be used for the connection of aluminum to aluminum and copper to copper wire
- Achievements: The nickel plated compression screws of copper to aluminum connectors can break down the oxide layer on the wire surface and provide a secure mechanical connection. The port wiring method eliminates the mixing of conductors, so as to prevent electrical fire caused by overheating of aluminum wire, which is a safe and permanent aluminum wire repair solution
- Security Features: The lugs of aluminum copper wire connectors are tinned to provide lower resistance and lower temperature. The corrosion inhibitor filled in the port can provide oxidation resistance and sealing, preventing the aluminum wire from corroding which causing poor contact and increasing the temperature of the contact site

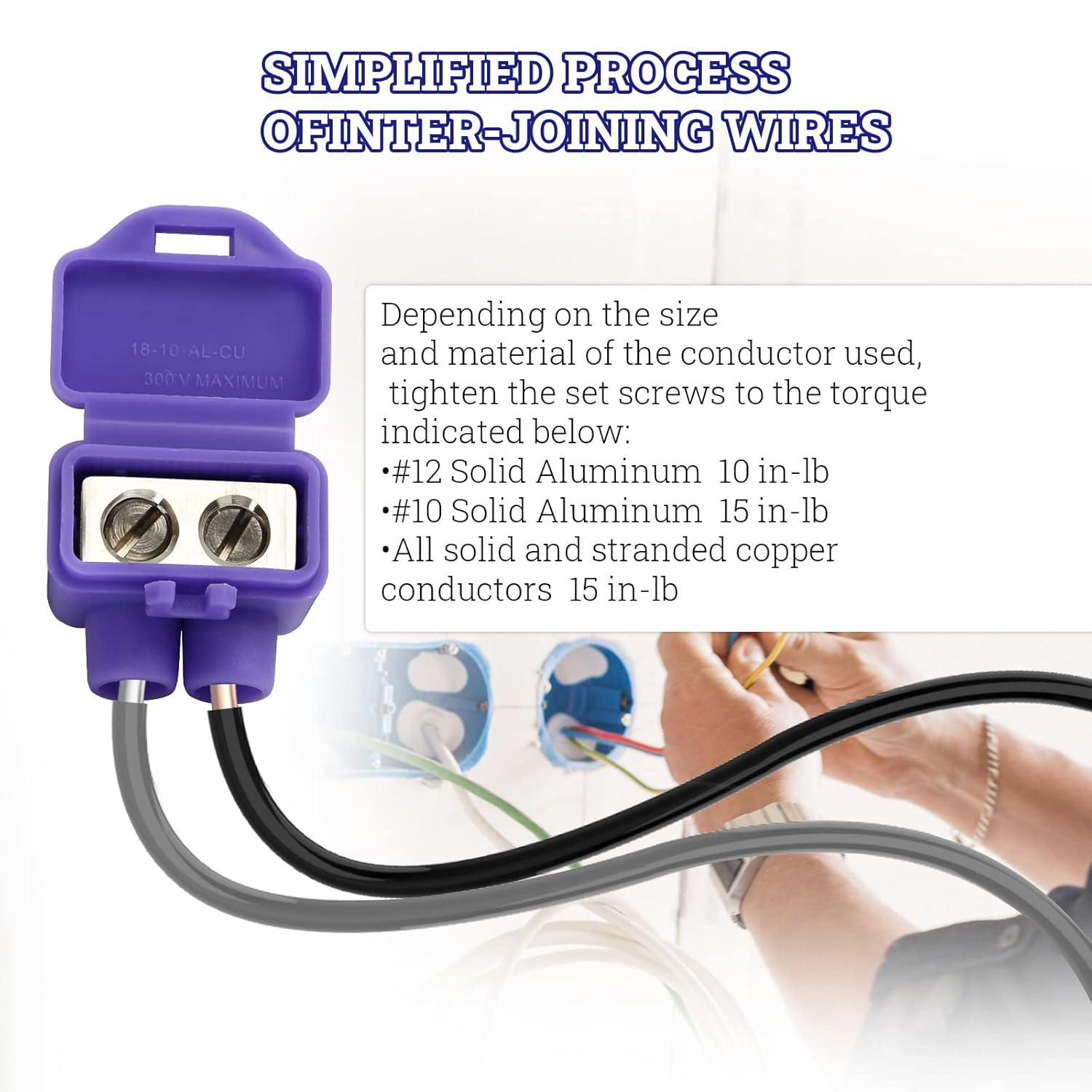

- Simple Installation: Installation of aluminum to copper lug is so simple that anyone with general electrical knowledge can install it. Only one wire is connected to each port and the fixing screws are tightened according to the specified torque depending on the size and material of the conductor. Close the lid after installation and confirm that the latch is fastened
| UPC | 770651711227 |
|---|---|
| Color | Purple |
| Model | I1-TCDV-PUCR |
| Terminal | Screw Terminal |
| Brand Name | WireVanl |
| Manufacturer | WireVanl |
| Material Type | Aluminum, Copper |
| Connector Type | Al/Cu Wire Connectors |
| Maximum Voltage | 300 Volts |
| Contact Material | Tin Plated Aluminum |
| Specification Met | UL |
| Included Components | Aluminum to Copper Wire Connectors |
| Insulation Material Type | Polypropylene |
| Item Dimensions L x W x H | 1.2"L x 0.63"W x 0.75"H |
