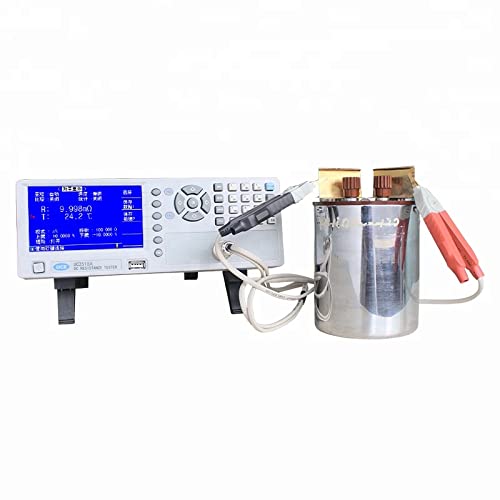

UCE UC2518A DC Low Resistance Meter Test Milliohm Micro Ohms 10μΩ~200KΩ

Brief Introduction UC2518 series can be used to test coil, inductor, transformer, voice coil, relay contact resistance, connector resistance, fuse, cable resistance, PCB resistance, welding resistance, conductive film, metal and so on. The temperature compensation function can eliminate the effect of temperature on the test, the temperature conversion function can effectively measure the temperature when the measured part is being measured. UC2518 series is a kind of low resistance tester with high speed, high precision and high performance, which can meet the requirements of production line quality assurance, purchase inspection and laboratory measurement, it can be also used for automatic equipment test. Performance Characteristics 4.3 inch TFT LCD display, with 480×272 RGB resolution It is more convenient for U disk to save the test results directly Maximum resistance accuracy is 0.05% Built-in comparator; HI, LO, IN can be sorted Temperature compensation and temperature conversion function Temperature basic accuracy is 0.1℃ Statistical functions, provide CpK, Cp and other statistics More than 100 groups of internal setting files for storage or call, U disk can expand more than 500 groups of test files to save or call The software version of the instrument can be upgraded and updated via USB HOST U disk can support file systems with format FAT16, FAT32 Standard HANDLER, USB HOST, USBCDC, and USBTMC; Optional RS232C, GPIB interface
